Steel Tubes

Tubes are manufactured using cold rolled steel, tin coated steel or non-ferrous material, depending on their application.  Due to variety of manufacturing processes and applications the following designs features may be considered.  Butt seem, overlapped seem or welded seem, solid material or perforated material, flange(s) on the end(s), indentations, protrusions, and tab(s), wing(s), or ear(s).

Standard Tube Sizes - Note Tube Sizes Not Listed Can Be Produced Upon Request

Inside Diameter
Fractional  Metric
Material Thickness
Decimal  Metric
Perforated or No Perforation Length
Fractional  Metric
1/8” 3,17 .010 ,25 Yes 1” > 25,4 >
3/16” 4,76 .012 ,30 Yes 1” > 25,4 >
7/32” 5,55 .012 ,30 Yes 1” > 25,4 >
¼” 6,35 .012 ,30 Yes 1” > 25,4 >
5/16” 7,93 .012 ,30 Yes 1” > 25,4 >
3/8” 9,52 .015 ,38 Yes 1” > 25,4 >
½” 12,70 .015 ,38 Yes 1” > 25,4 >
5/8” 15,87 .015 ,38 Yes 1” > 25,4 >
¾” 19,05 .015 ,38 Yes 1” > 25,4 >
7/8” 22,22 .019 ,48 Yes 1” > 25,4 >
1” 25,4 .019 ,48 Yes 1” > 25,4 >
1-1/8” 28,57 .022 ,55 Yes 1” > 25,4 >
1-3/16” 30,14 .030 ,76 Yes 1” > 25,4 >
1-1/4” 31,75 .030 ,76 Yes 1” > 25,4 >


CLICK HERE to request a chaplets quote

or call 630-232-2581

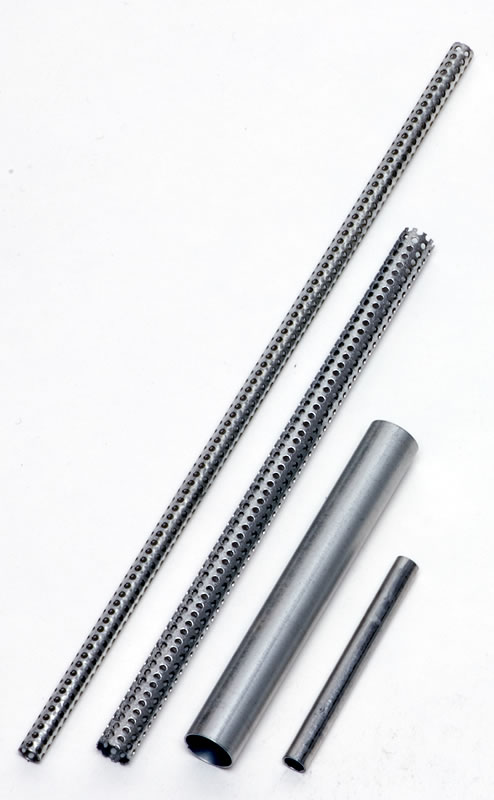

Click Image Below to Enlarge

Steel Tubes
