Radiator Chaplets

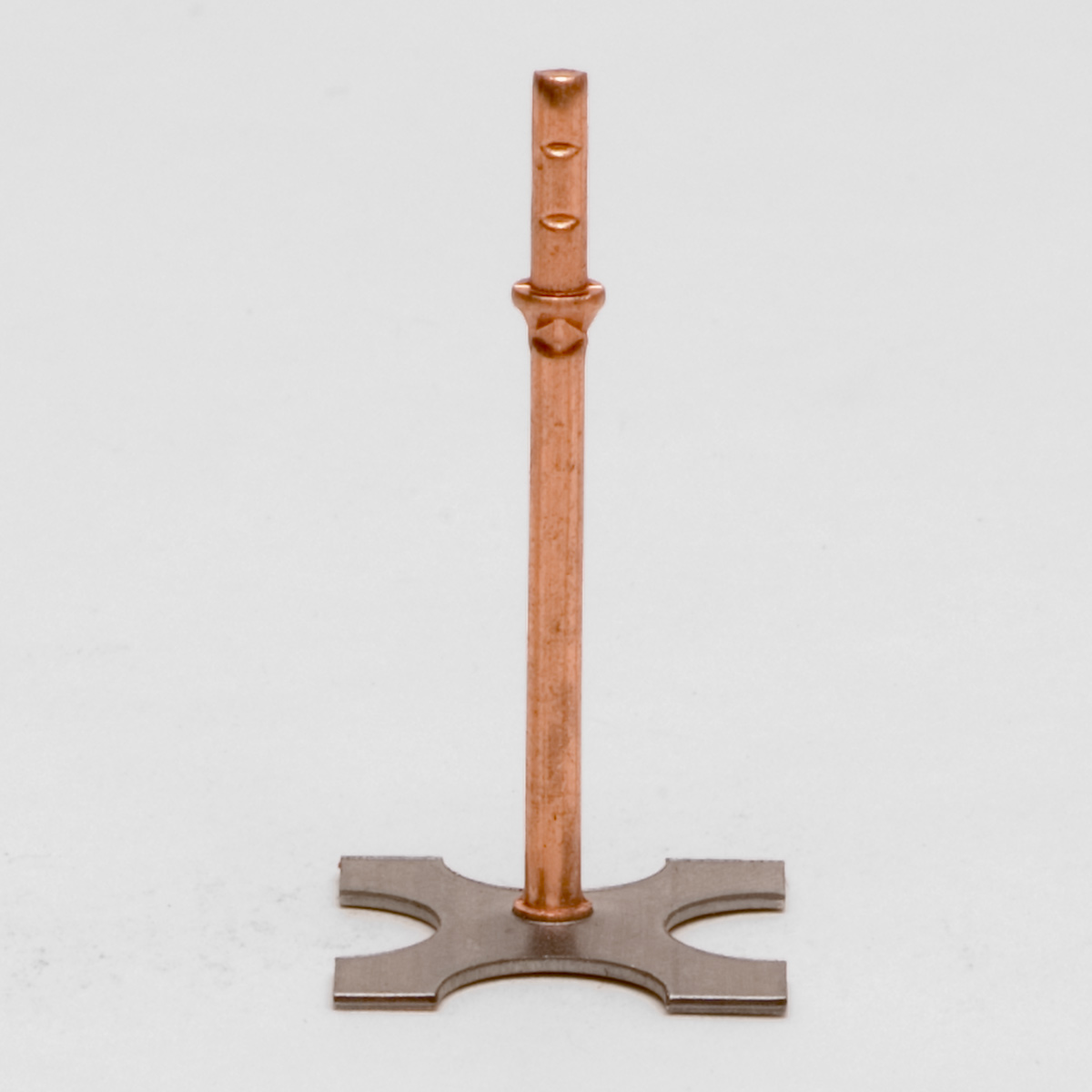

Radiator Chaplets (also referred to as stem chaplets, ram chaplets, shoulder chaplets and single head chaplets) are manufactured from mild steel, generally coated with tin and used in thin-walled castings where the chaplet can be set in the pattern or into an insert in the pattern before the mold is formed or rammed. Non-ferrous metals for the stem such as aluminum and copper are available upon request.

The information listed below details general characteristics on their dimensional design. These chaplets can have knitting nicks, to aid in fusion, on the stems and a break-off nick above the shoulder. Their heads can be produced in a cross, square, or “S&R” open configuration. Additional design modifications can be integrated to meet your specifications.

Length of the stem can be produced from ½”-12,7 MM to 3-1/2”-88,9 MM

Standard Stem Sizes - Note Stem Sizes Not Listed Can Be Produced Upon Request

Fractional Decimal Gage Metric
3/64" .0475 #18 1,2
1/16” .0625 #16 1,6
N/A .0720 #15 1,8
3/32” .0890 #13 2,3
N/A .1050 #12 2,7
1/8” .1200 #11 3,0
N/A .1350 #10 3,4
3/16” .1770 #7 4,5
¼” .2253 #4 5,7



Standard Plate Sizes – Note Plate Sizes Not Listed Can Be Produced Upon Request

Fractional Decimal Metric Square  Cross S&R Open
1/2” .500 12,7 Yes Yes No
¾” .750 19,0 Yes Yes No
1” 1.000 25,4 Yes Yes No
11/16” .6875 17,5 No No Yes





CLICK HERE to request a chaplets quote

or call 630-232-2581



Click an Image Below to Enlarge

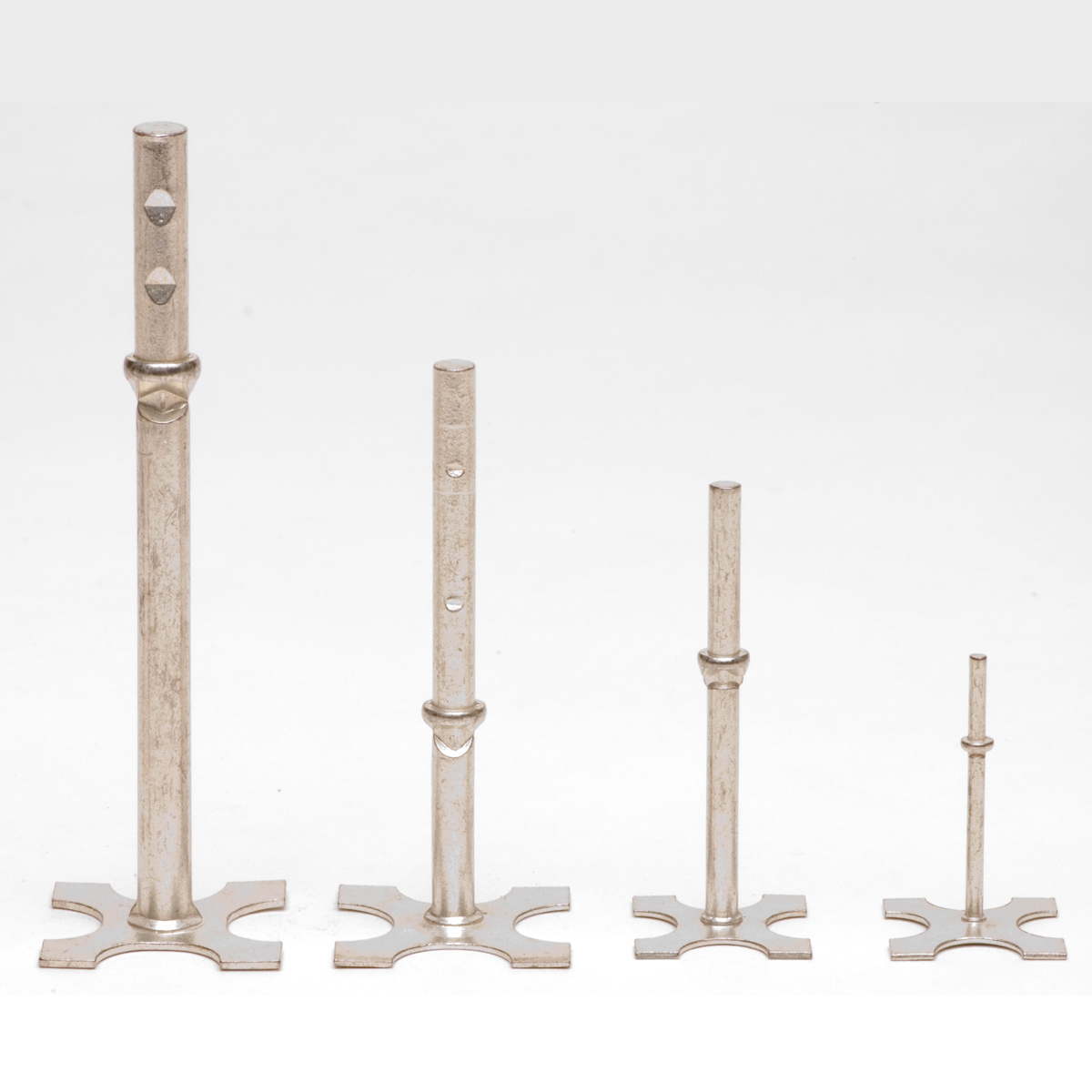

Radiator Chaplets

Radiator Chaplets

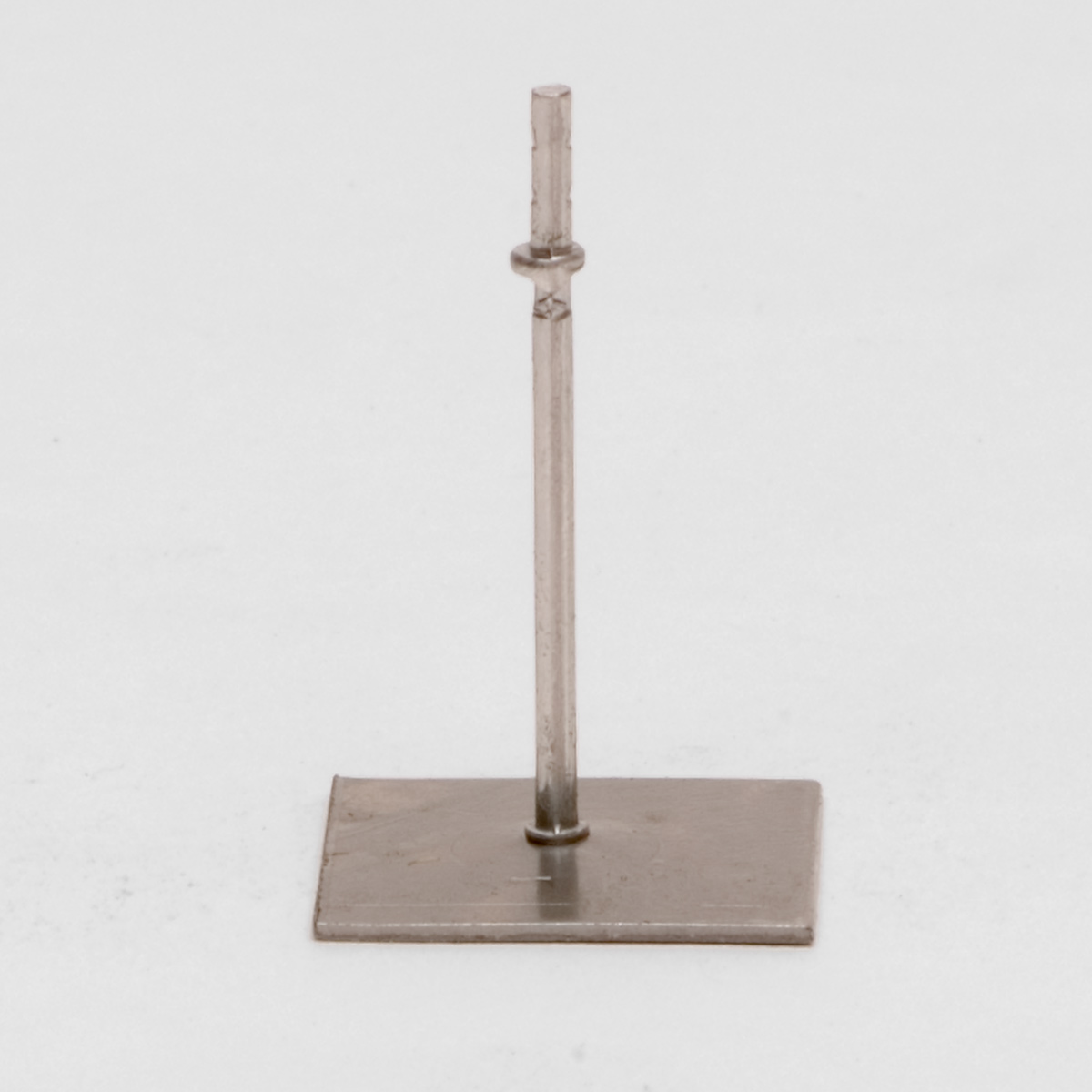

Radiator Chaplets

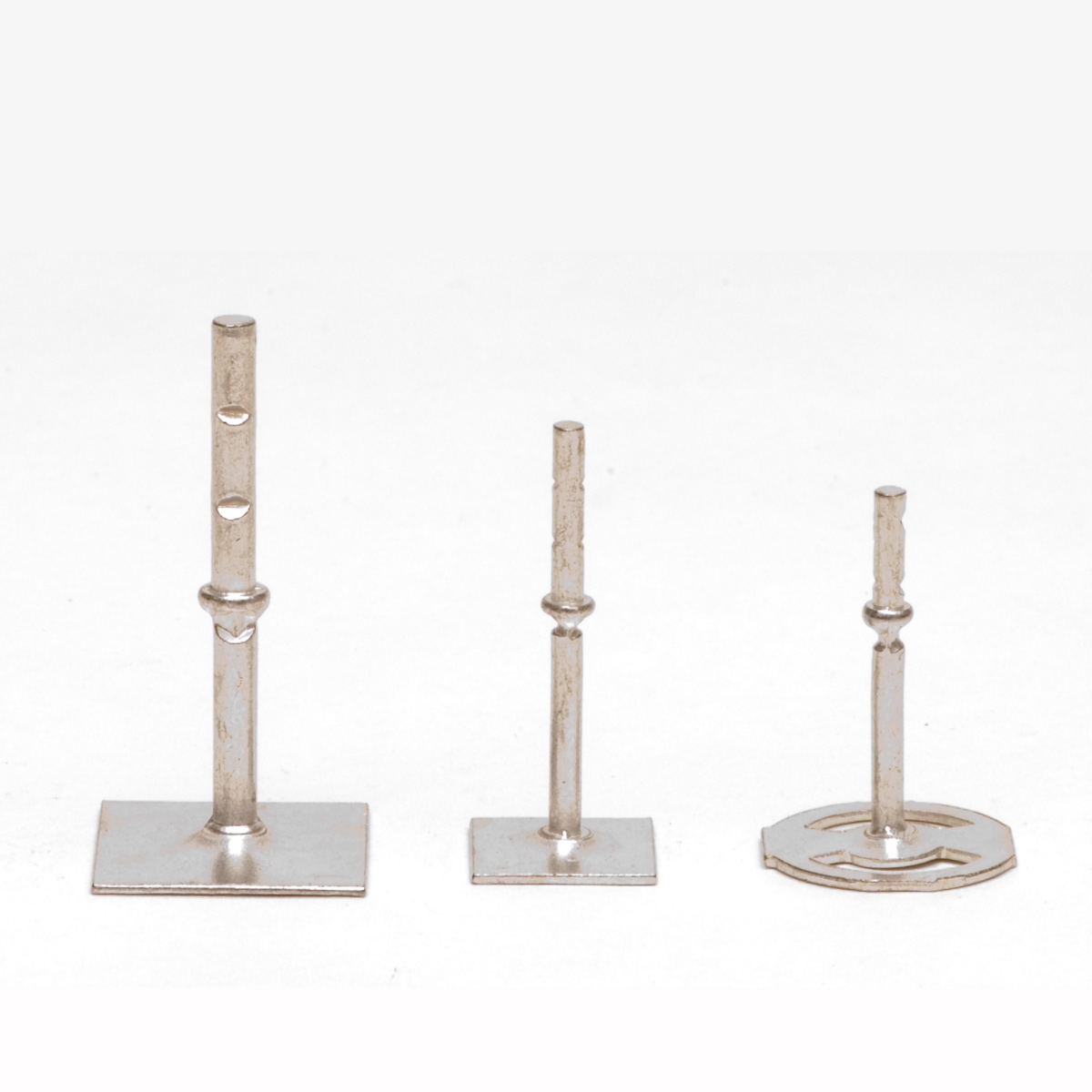

Radiator Chaplets
